Matsya Green Enviro Pvt Ltd is one of the leading cleanroom solution providers in India, specializing in the design, manufacturing, and supply of high-quality cleanroom pass boxes (pass-through boxes) for various industries.
As a trusted OEM (Original Equipment Manufacturer), we manufacture advanced Matsya Green Enviro Cleanroom Pass Boxes designed to meet ISO 14644 and GMP-certified cleanroom standards, ensuring safe and contamination-free material transfer within controlled environments.

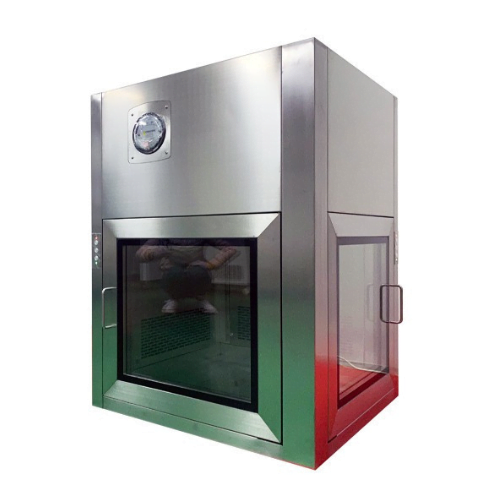

Dynamic Pass Box
Features of Dynamic Pass Through Box:
- Automatic Door System
- HEPA Filtration System
- UV-C Sterilization
- ESD Protection
- Adjustable Airflow Control
- Stainless Steel Construction
- Interlocking Door Mechanism
- LED Lighting
- Touchscreen Control Panel
- Alarm System
- Standards Compliance.
Technical Specifications – Dynamic Pass Box
Cleanliness Standards
Designed to achieve Class 100 cleanliness as per ISO 14644 and IEST-RP-CC001.3 standards.
Air Velocity
Average air velocity at grille: 90 ± 20 FPM measured at 150 mm from HEPA filter face
Material of Construction (MOC)
Internal & external body: SS 304 / SS 316 (1.0 mm / 1.2 mm thickness)Door hinges & handles: SS 304
Filtration System
Pre-Filter
- Efficiency: 95% down to 5 microns
- Grade: EU5
- Type: Washable (for fresh air & recirculation)
HEPA Filter
- Efficiency: 99.999% down to 0.3 microns
- Grade: H14
- Make: As per Client
Control System
Electromagnetic Door Interlocking System
Ensures only one door can be opened at a time for contamination control
Motor Blower
- Type: Statically & dynamically balanced centrifugal blower
- Configuration: Single / Double inlet
- Warranty: 1 Year from date of dispatch

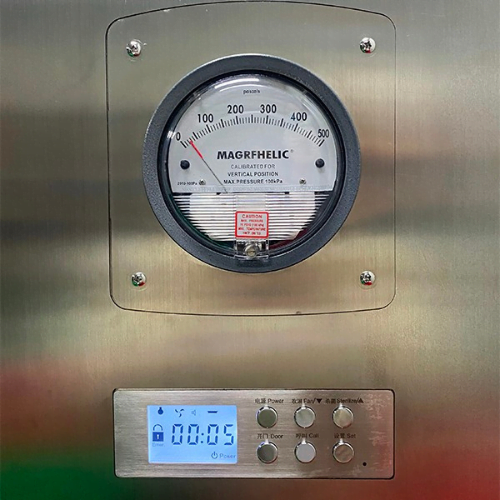

Pressure Monitoring
- Magnehelic Gauge: Range 0–25 mm
- Purpose: Measures differential pressure across HEPA filter
- Make: Omicron / Care / Nextech
Speed Control
- Variable speed controller provided
- Maintains required airflow velocity and performance
Electrical Specifications
- LED Lighting
- UV Light
- Rating: 8W – 11W
- Display PanelTwo-line digital display
- ON/OFF push buttons with LED indicators
Special Features
- Double skin body construction for enhanced durability
- Recirculatory plenum on both sides
- Door open/close delay with audio-visual alarm
- UV hour meter (inbuilt)
- 30 mm thick double skin doors with view panel
- Double-sided 5 mm toughened glass
Noise Level
- Less than 65 dB
Power Supply
- 230V ±10%, 50 Hz, Single Phase
- Also available in Three Phase configuration
Documentation
- Complete documentation provided:
- DQ (Design Qualification)
- IQ (Installation Qualification)
- OQ (Operational Qualification)
- All required test certificates
- Pharmaceutical Manufacturing Facilities
- Biotechnology Laboratories
- Microelectronics Manufacturing
- Hospitals & Healthcare Facilities
- Food Processing Industries
- Research Laboratories
- Aerospace & Automotive Industries
- Semiconductor Fabrication Units
Static Pass Box
Features of Static Pass Through Box:
- Dual chambers with interlocking doors
- Designed for controlled material transfer
- Stainless steel construction for durability and easy cleaning
- HEPA or ULPA filters ensure air cleanliness
- UV-C sterilization for additional disinfection
- Mechanical or electronic interlocking systems prevent simultaneous door opening
- Optional LED lighting and touchscreen controls
- Available in various sizes and configurations
- Compliant with ISO and GMP standards
Technical Specifications – Dynamic Pass Box
Cleanliness Standards
- Designed to maintain controlled environments as per ISO 14644 and GMP guidelines
- Suitable for transfer between two cleanroom areas of equal classification
Air System
- No internal air circulation or motor blower
- Operates without HEPA airflow (optional UV or filtration can be provided if required)
Material of Construction (MOC)
- Internal & external body: SS 304 / SS 316 (1.0 mm / 1.2 mm thickness)
- Door hinges & handles: SS 304
- Smooth finish for easy cleaning and maintenance
Door System
- Mechanical / Electromagnetic Interlocking System
- Prevents both doors from opening simultaneously
- Double door configuration for contamination control
Viewing Panel
- Double-sided 5 mm toughened glass
- Provides clear visibility during material transfer
UV Sterilization (Optional)
- UV Light: 8W – 11W (Make: Philips or equivalent)
- Used for internal disinfection
- Note: UV tube warranty not applicable; fixture may carry limited warranty
Lighting (Optional)
- LED Light for internal illumination
- Provides adequate visibility during operation
Special Features
- Double skin body construction (optional for enhanced durability)
- 30 mm thick doors with view panel
- Audio/visual alarm (optional for door status indication)
- Compact and user-friendly design
- Easy to install in modular cleanrooms, drywall, or sandwich panels
Noise Level
Silent operation (No motor/blower used)
Power Supply
- Required only for optional components (UV / Light / Interlock)
- 230V ±10%, 50 Hz, Single Phase
Documentation
- DQ (Design Qualification)
- IQ (Installation Qualification)
- OQ (Operational Qualification)
- Relevant test certificates
- Pharmaceutical Manufacturing Facilities
- Biotechnology Laboratories
- Microelectronics Manufacturing
- Hospitals & Healthcare Facilities
- Food Processing Industries
- Research Laboratories
- Aerospace & Automotive Industries
- Semiconductor Fabrication Units
